Requirements

The RC Baja Car must withstand a vertical drop on one wheel from 2 feet.
The chassis will weigh less than 7 pounds.
The RC Baja Car must withstand a front impact force of 135 lbf while traveling at 15 mph.
The RC Baja Car must be able to maneuver in multiple different terrains in the ASME Baja course and complete in under 60 seconds.

List of Figures

Figure 1: This is an analysis of the RC Baja Chassis.
Figure 2: This is an analysis of the RC Baja Car sustaining front impact due to an object or wall at 15 mph.
Figure 3: Analysis of RC Baja Car absorbing enough energy when being dropped from 2 feet and not have any breaks or failures in the chassis.
Figure 4: Minimum allowable screw diameter to withstand impact and not fail at screws.

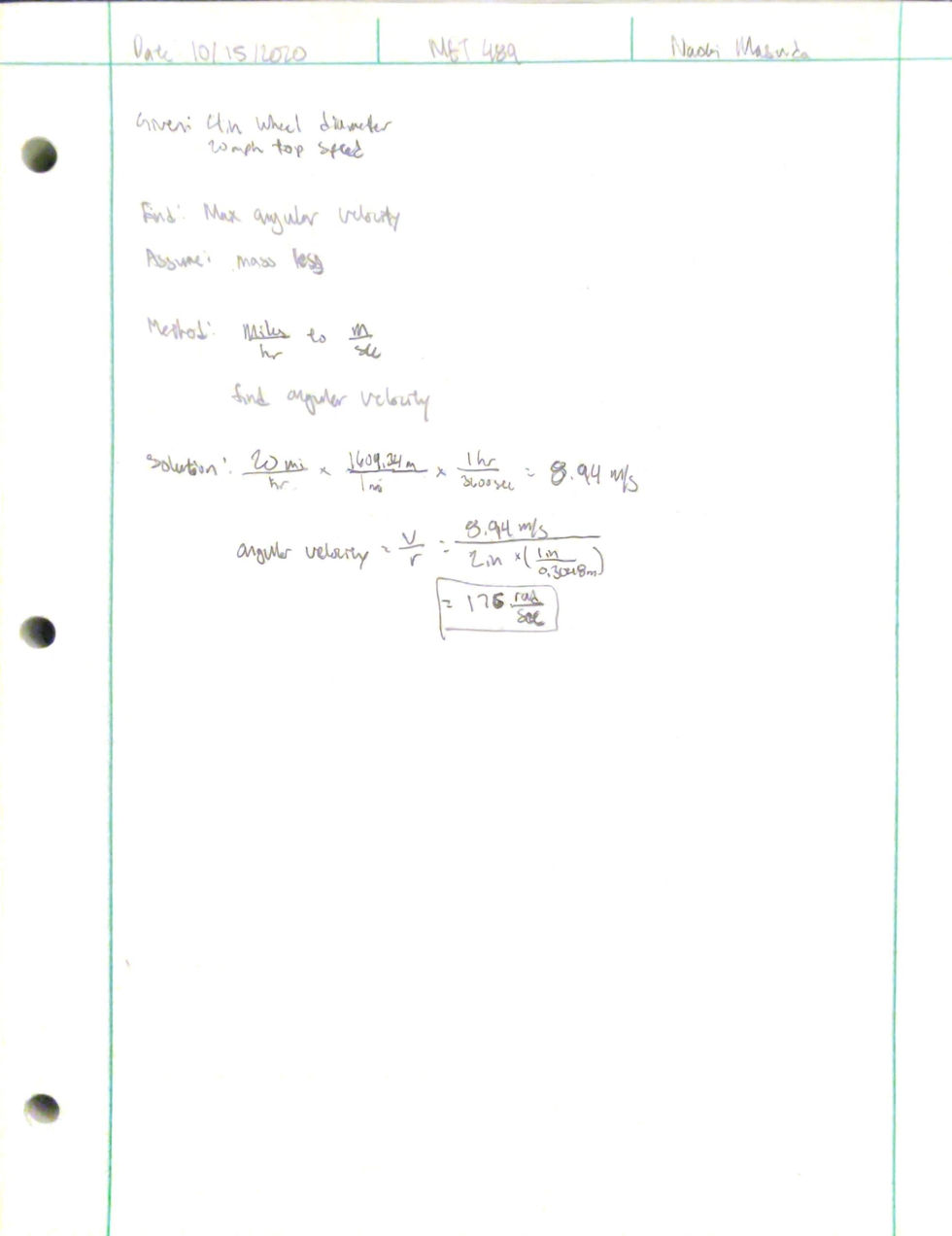

Figure 5: Finding the maximum angular velocity of the wheels.
Figure 6: Finding the length of mounting supports and angle needed to be attached at.
Figure 7: Minimum allowable diameter pins.

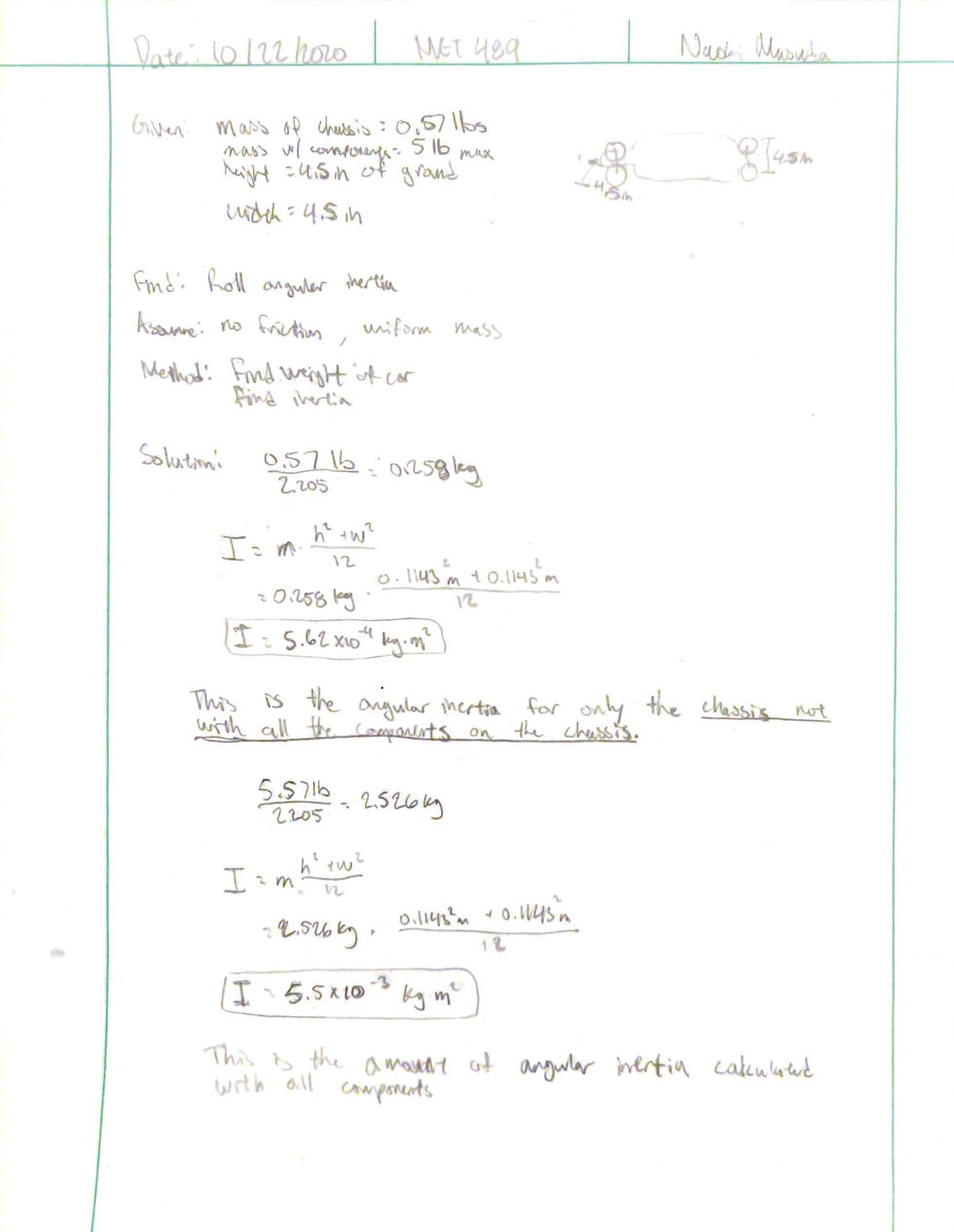

Figure 8: Angular moment of inertia for RC car.
Figure 9: Spring force acting on the car.

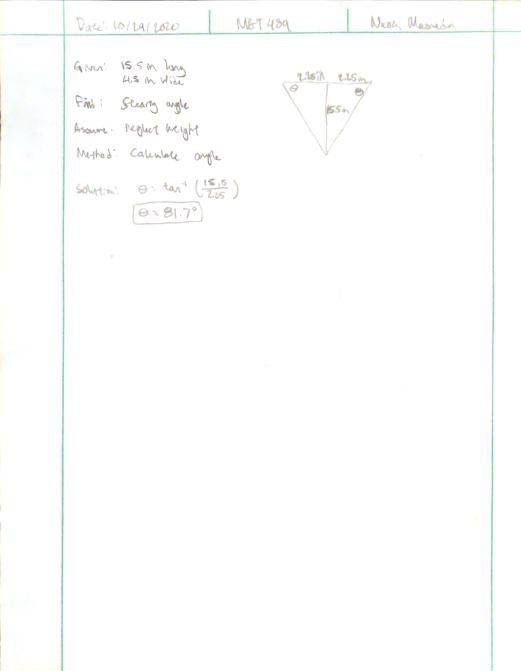

Figure 10: Required steering angle.
Figure 11: Maximum allowable load on one wheel.
Figure 12: Maximum drive-train angle positioning.
